Cosmetic Packaging Dedicated Injection Molding Machine
- Categories : Special custom series
Introduction to Cosmetic Packaging Dedicated Injection Molding MachineThe Cosmetic Packaging Dedicated Injection Molding Machine is an advanced solution designed to meet the high standards of appearance,precision,and production efficiency required by the cosmetic industry.Here are the core adv
Technical parameter
YH Series Servo Energy-Saving Injection Molding Machines | ||||||
YH-158 | ||||||
International Size Rating | 480 | |||||
Injection Unit | ||||||
Screw specification | A | B | C | D | ||
Screw diameter | mm | 38 | 42 | 45 | / | |
Screw ratio | L/D | 23 | 21.2 | 19.8 | / | |
Theoretical injection capacity | cm³ | 227 | 277 | 318 | / | |
Injection weight | g | 206 | 252 | 289 | / | |
Injection rate | g/s | 107 | 151 | 184 | / | |
Injection pressure | Mpa | 233 | 190 | 166 | / | |
Screw rotation speed | r/min | 0-195 | ||||
Clamping Unit | Auxiliary machine specifications | |||||
Clamping force | KN | 1580 | Dryer | 75kg | ||
Mold opening stroke | mm | 410 | Feeder | 700g | ||
Space between tie bars | mm | 470×420 | Air switch specification | A | ||
Max.Mold Height | mm | 500 | Power cord specification | mm² | ||
Min.Mold Height | mm | 160 | Mold positioning ring specification (mm) | Ø100 | ||
Ejector Stroke | mm | 120 | Nozzle aperture (mm) | Ø4.5 | ||
Ejector Force | KN | 50 | Nozzle spherical R angle | SR | ||
Others | Mold clamping screw specification | M16 | ||||
Oil pump motor power | KW | 15 | Template outline dimension (mm) | |||
Heater power | KW | 10.1 | Foundation bearing requirement | |||
Machine dimension | M | 4.66×1.28×1.72 | Oil cooler water flow requirement (L/min) | |||
Machine weight | T | 4.2 | Cooler inlet and outlet pipe interface | |||
Hopper capacity | L | 25 | Minimum mold size (length × width) (mm) | |||
Oil Tank Capacity | L | 210 | ||||
Instructions: 1. Theoretical injection volume = cross-sectional area of the injection molding machine's barrel × injection stroke 2. Actual injection volume = theoretical injection volume × 0.91 (calculated based on GPPS) | ||||||
Product Description
Introduction to Cosmetic Packaging Dedicated Injection Molding Machine
The Cosmetic Packaging Dedicated Injection Molding Machine is an advanced solution designed to meet the high standards of appearance,precision,and production efficiency required by the cosmetic industry.Here are the core advantages of this machine:
High-Speed Production
• Efficient Molding:Utilizing advanced injection molding technology,it achieves short molding cycles and fast injection speeds,significantly enhancing production efficiency for large-scale manufacturing.
• Synchronized Function:The machine features a synchronized function for mold opening and material storage,optimizing the production process and further reducing production cycles.
Energy-Saving and Electricity-Conserving
• Energy-Efficient Technology:Equipped with energy-efficient technologies that significantly reduce energy consumption,saving a considerable amount of electricity compared to traditional machines and effectively lowering production costs.
• Smart Management:An intelligent energy management system adjusts power consumption according to production needs,further minimizing energy use.
High Precision
• Precision Control:The machine is equipped with a high-precision control system that accurately manages key parameters such as temperature,pressure,and speed during the injection molding process,ensuring consistent product quality.
• Mold Compatibility:Specifically designed for cosmetic packaging production,it accommodates high-precision molds to meet the industry's strict requirements for dimensional accuracy and surface quality.
Stable and Reliable
• High-Quality Components:The use of high-quality T-slot templates and linear guides ensures stable machine operation and precision,reducing vibration and wear,and extending the equipment's service life.
• T-Slot Template:Facilitates quick mold installation and adjustment,improving production efficiency and reducing machine downtime.
• Linear Guides:Provide precise motion control,ensuring smooth and accurate mold opening and closing,further enhancing product quality.
With its efficient,energy-saving,high-precision,and stable performance,the Cosmetic Packaging Dedicated Injection Molding Machine is an ideal choice for cosmetic packaging production,helping businesses reduce costs and enhance their market competitiveness.

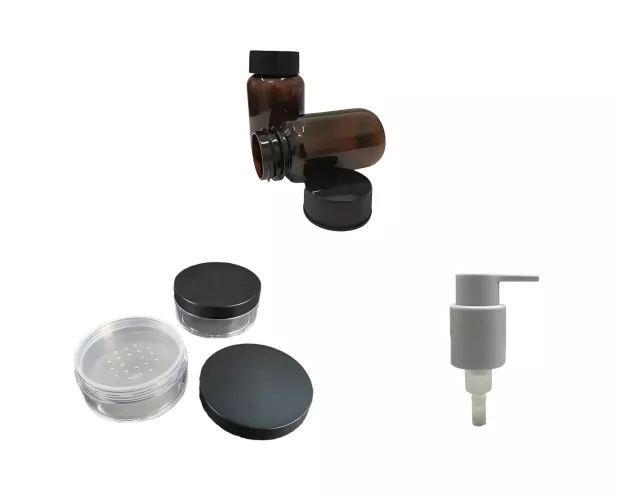

Application Cases
