PVC Fittings Injection Molding Machine
- Categories : Special custom series
Introduction to PVC Fittings Injection Molding MachineThe PVC fittings injection molding machine is a highly efficient injection molding equipment specifically designed for the production of high-quality PVC fittings.It features the following highlights:High-Speed Production• Fast
Technical parameter
YH Series Servo Energy-Saving Injection Molding Machines | ||||||
YH-308 | ||||||
International Size Rating | 1560 | |||||
Injection Unit | ||||||
Screw specification | A | B | C | D | ||
Screw diameter | mm | 55 | 60 | 65 | / | |
Screw ratio | L/D | 21.8 | 20 | 18.4 | / | |
Theoretical injection capacity | cm³ | 713 | 848 | 995 | / | |
Injection weight | g | 649 | 772 | 906 | / | |
Injection rate | g/s | 220 | 262 | 307 | / | |
Injection pressure | Mpa | 219 | 184 | 156 | / | |
Screw rotation speed | r/min | 0-200 | ||||
Clamping Unit | Auxiliary machine specifications | |||||
Clamping force | KN | 3080 | Dryer | 100kg | ||
Mold opening stroke | mm | 560 | Feeder | 800g | ||
Space between tie bars | mm | 625×575 | Air switch specification | A | ||
Max.Mold Height | mm | 600 | Power cord specification | mm² | ||
Min.Mold Height | mm | 200 | Mold positioning ring specification (mm) | Ø100 | ||
Ejector Stroke | mm | 160 | Nozzle aperture (mm) | Ø4.5 | ||
Ejector Force | KN | 70 | Nozzle spherical R angle | SR | ||
Others | Mold clamping screw specification | M20 | ||||
Oil pump motor power | KW | 36.5 | Template outline dimension (mm) | |||
Heater power | KW | 17.2 | Foundation bearing requirement | |||
Machine dimension | M | 6.7×1.8×2.0 | Oil cooler water flow requirement (L/min) | |||
Machine weight | T | 9.2 | Cooler inlet and outlet pipe interface | |||
Hopper capacity | L | 50 | Minimum mold size (length × width) (mm) | |||
Oil Tank Capacity | L | 390 | ||||
Instructions: 1. Theoretical injection volume = cross-sectional area of the injection molding machine's barrel × injection stroke 2. Actual injection volume = theoretical injection volume × 0.91 (calculated based on GPPS) | ||||||
Product Description
Introduction to PVC Fittings Injection Molding Machine
The PVC fittings injection molding machine is a highly efficient injection molding equipment specifically designed for the production of high-quality PVC fittings.It features the following highlights:
High-Speed Production
• Fast Molding Cycle：Equipped with advanced injection molding technology,it offers a short molding cycle and fast injection speed,significantly improving production efficiency to meet large-scale production demands.
• Synchronized Functionality：It features a synchronized function of mold opening and material storage,optimizing the production process and shortening the production cycle to further enhance production speed.
Energy-Saving and Electricity-Conserving
• Efficient Energy System：Adopting advanced energy-saving technologies,it significantly reduces energy consumption compared to traditional injection molding machines,saving a considerable amount of electricity and reducing production costs.
• Smart Energy Management：The intelligent energy management system automatically adjusts power according to production needs,further reducing energy consumption and saving operational costs for businesses.
Precise Control
• High-Precision Control System：It is equipped with a high-precision control system that can accurately control key parameters such as temperature,pressure,and speed during the injection molding process,ensuring the stability and consistency of the quality of PVC fittings.
• User-Friendly Interface：The simple and intuitive operation interface allows users to easily monitor and adjust production parameters,ensuring the efficiency and stability of the production process.
Stable and Reliable
• High-Quality Components：It features high-quality T-slot templates and linear guides,ensuring the stability and precision of machine operation,reducing vibration and wear,and extending the service life of the equipment.
• T-Slot Template：Facilitates quick mold installation and adjustment,improving production efficiency and reducing machine downtime.
• Linear Guides：Provide precise motion control,ensuring smooth and accurate mold opening and closing,further enhancing product quality.
Efficient Design
• Quick Mold Change：The T-slot template design supports rapid mold change,significantly reducing machine downtime and improving production efficiency.
• Precise Motion Control：Linear guides ensure smooth and precise mold opening and closing,further enhancing production efficiency and product quality.
The PVC fittings injection molding machine,with its high-speed,energy-saving,precise,and stable performance,is an ideal choice in the field of PVC fittings production.It can help enterprises stand out in fierce market competition and achieve efficient and energy-saving production goals.

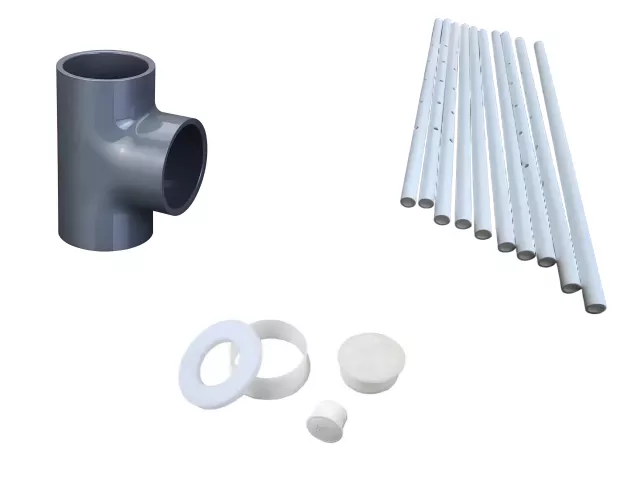

Application Cases
