PPR Fittings Injection Molding Machine
- Categories : Special custom series
Introduction to PPR Fittings Injection Molding MachineThe PPR fittings injection molding machine is a high-performance injection molding equipment specifically designed for the production of high-quality PPR fittings.Here are the core features of this machine:High-Speed Production•
Technical parameter
YH Series Servo Energy-Saving Injection Molding Machines | ||||||
YH-358 | ||||||
International Size Rating | 2350 | |||||
Injection Unit | ||||||
Screw specification | A | B | C | D | ||
Screw diameter | mm | 65 | 70 | 75 | / | |
Screw ratio | L/D | 23.4 | 21.7 | 20.2 | / | |
Theoretical injection capacity | cm³ | 1161 | 1347 | 1546 | / | |
Injection weight | g | 1057 | 1226 | 1407 | / | |
Injection rate | g/s | 298 | 345 | 397 | / | |
Injection pressure | Mpa | 202 | 179 | 152 | / | |
Screw rotation speed | r/min | 0-178 | ||||
Clamping Unit | Auxiliary machine specifications | |||||
Clamping force | KN | 3580 | Dryer | 150kg | ||
Mold opening stroke | mm | 670 | Feeder | 800g | ||
Space between tie bars | mm | 730×680 | Air switch specification | 160A | ||
Max.Mold Height | mm | 750 | Power cord specification | 35mm² | ||
Min.Mold Height | mm | 280 | Mold positioning ring specification (mm) | Ø160 | ||
Ejector Stroke | mm | 180 | Nozzle aperture (mm) | Ø4 | ||
Ejector Force | KN | 120 | Nozzle spherical R angle | SR15 | ||
Others | Mold clamping screw specification | M20 | ||||
Oil pump motor power | KW | 38.8 | Template outline dimension (mm) | 990×1040 | ||
Heater power | KW | 20.3 | Foundation bearing requirement | 3t/m² | ||
Machine dimension | M | 7.3×1.93×2.1 | Oil cooler water flow requirement (L/min) | 100 | ||
Machine weight | T | 13.1 | Cooler inlet and outlet pipe interface | 1-1/4″ | ||
Hopper capacity | L | 50 | Minimum mold size (length × width) (mm) | 510×475 | ||
Oil Tank Capacity | L | 580 | ||||
Instructions: 1. Theoretical injection volume = cross-sectional area of the injection molding machine's barrel × injection stroke 2. Actual injection volume = theoretical injection volume × 0.91 (calculated based on GPPS) | ||||||
Product Description
Introduction to PPR Fittings Injection Molding Machine
The PPR fittings injection molding machine is a high-performance injection molding equipment specifically designed for the production of high-quality PPR fittings.Here are the core features of this machine:
High-Speed Production
• Equipped with advanced injection molding technology,it offers extremely fast injection speeds and significantly shortened molding cycles,greatly enhancing production efficiency to meet large-scale production needs.
• The machine features a synchronized function of mold opening and material storage,further optimizing the production process and reducing production time to ensure more output within a unit of time.
Energy-Saving and Electricity-Conserving
• The injection molding machine uses an efficient energy-saving drive system,significantly reducing energy consumption compared to traditional equipment and saving a considerable amount of electricity costs.
• An intelligent energy management system automatically adjusts power according to production needs,further reducing energy consumption and saving operational costs for enterprises.
Precise Control
• Equipped with a high-precision control system,it can accurately control key parameters such as temperature,pressure,and speed during the injection molding process,ensuring the stability and consistency of the quality of PPR fittings.
• The intelligent operation interface is user-friendly,allowing users to easily monitor and adjust production parameters to ensure the efficiency and stability of the production process.
Stable and Reliable
• The use of high-quality T-slot templates and linear guides ensures the stability and precision of machine operation,reducing vibration and wear,and extending the service life of the equipment.
• The T-slot template facilitates quick mold installation and adjustment,while the linear guide provides precise motion control,ensuring high precision and repeatability in the molding process.
Efficient Design
• The T-slot template design allows for quick mold change and adjustment,significantly reducing machine downtime and improving production efficiency.
• The use of linear guides ensures smooth and precise mold opening and closing,further enhancing production efficiency and product quality.
With its high-speed,energy-saving,precise,and stable performance,the PPR fittings injection molding machine is an ideal choice in the field of PPR fittings production.It can help enterprises stand out in fierce market competition and achieve efficient and energy-saving production goals.

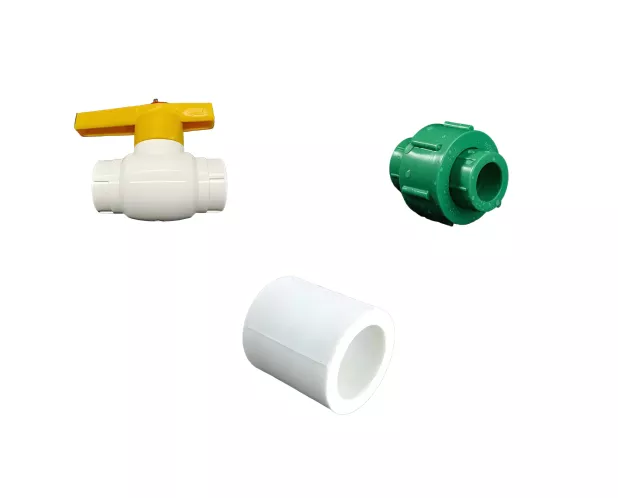

Application Cases
