Feature 1: The distance between pull rods is increased to meet the application of large size multi-cavity molds and improve production efficiency.
Feature 2: The diameter of the pull rod is thickened to increase the rigidity, strength and service life of the locking parts.
Feature 3: The design of suspended pull rod ensures that there is no lubricating oil pollution in the mold area (clean production).
Feature 4: The injection, opening and closing mold double-track scheme is adopted, which is stable, efficient and energy-saving, and meets the requirements of high-precision product molding.
Feature 5: improve the operation cycle and increase the shift output.
Feature 6: The molding quality and precision are significantly improved by improving the injection speed and response.
Feature 7: Use the latest all-in-one "excellent" computer to comprehensively improve the positioning accuracy and improve the stability of the whole machine.
Feature 8: improve the accuracy of temperature control, reduce the difficulty of operator's parameter setting, and make the operation more convenient and efficient.
Feature 9: A complete network solution for injection molding machine production, accurate data collection and big data accumulation, which can solve core basic problems for industrial digitalization.
Feature 10: standard proportional back pressure valve.

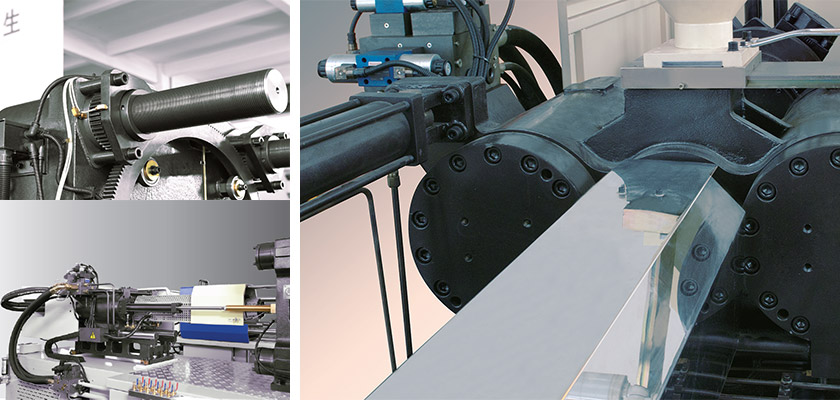

Clamping part 1.The main components such as templates have undergone multiple optimization designs, and based on the analysis of finite element software Strengthen the design of the template to ensure its longevity Life also protects the mold.
2.In response to the difficult problems of PET bottle embryo molds, such as a large number of mold cavities, high ejection stress, and long plastic products, our company is equipped with oversized ejection cylinders to effectively improve ejection force and ejection stroke, meeting various bottle embryo production requirements.
Control interface
Equipped with a high-performance Hongxun computer as standard, equipped with a PET specialized needle valve control program, it can easily achieve process adjustment, meet the control requirements of PET specialized machines, support expansion of I/O groups, and support CAN/ETHER CAT communication.
The hydraulic power The hydraulic power part adopts a servo motor to drive a large displacement oil pump, combined with a high-speed hydraulic motor (PET specialized motor) to effectively increase the rated torque, ensure smooth and reliable screw operation, and achieve high-speed production. (Optional electric glue melting solution, synchronous mold opening and plasticizing function, further improving production efficiency。
